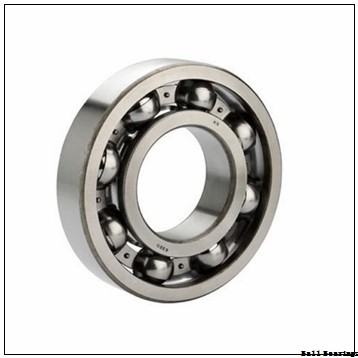

EBC 6217 ZZ C3 Ball Bearings
| Brand Name |
EBC |
| Model Number |
6217 ZZ C3 |
| Min.Order Quantity |
1 pcs |
| Price |
Negotiable |
Product Features
EBC 6217 ZZ C3 bearing Size Chart (mm/inches) |
|---|
| Bore Type | Cylindrical Bore |
| Enclosure | Open |
| Configuration | Single Row |
| d | 85 mm |
| D | 150 mm |
| B | 28 mm |
| Fillet Radius/Chamfer | 2 mm |
| Outside Ring Inside Diameter | 133.8 mm |
| r1 | 2 mm |
| Dynamic Load Rating | 120,000 N |
| Static Load Rating | 140,000 N |
| Limiting Speed - Grease | 4,300 rpm |
| Limiting Speed - Oil | 5,000 rpm |
| Radial Clearance | 0.075 to 0.110 mm |
| da (min) | 95 mm |
| db (min) | 95 mm |
| db (max) | 99 mm |
| dc (min) | 104 mm |
| dd (min) | 110 mm |
| Da (max) | 140 mm |
| Db (min) | 140 mm |
| Db (max) | 137 mm |
| ra (max) | 2 mm |
| ra1 (max) | 2 mm |
